MECHANICAL PACKER
PRODUCT CODE AVAILABILITY
Part In-stock
.
PRODUCT DESCRIPTION
Packer is used in chemical grout injection such as, in epoxy and polyurethane system with pressure higher than 20 kg/cm (max pressure 500 kg/cm) into concrete structure. At Polycell, we produce injection packers in various specifications and requirements.
The specification of packers used here may be chosen depending on the thickness of the concrete structures in site situations.
ADVANTAGES OF POLYCELL PACKER SYSTEM

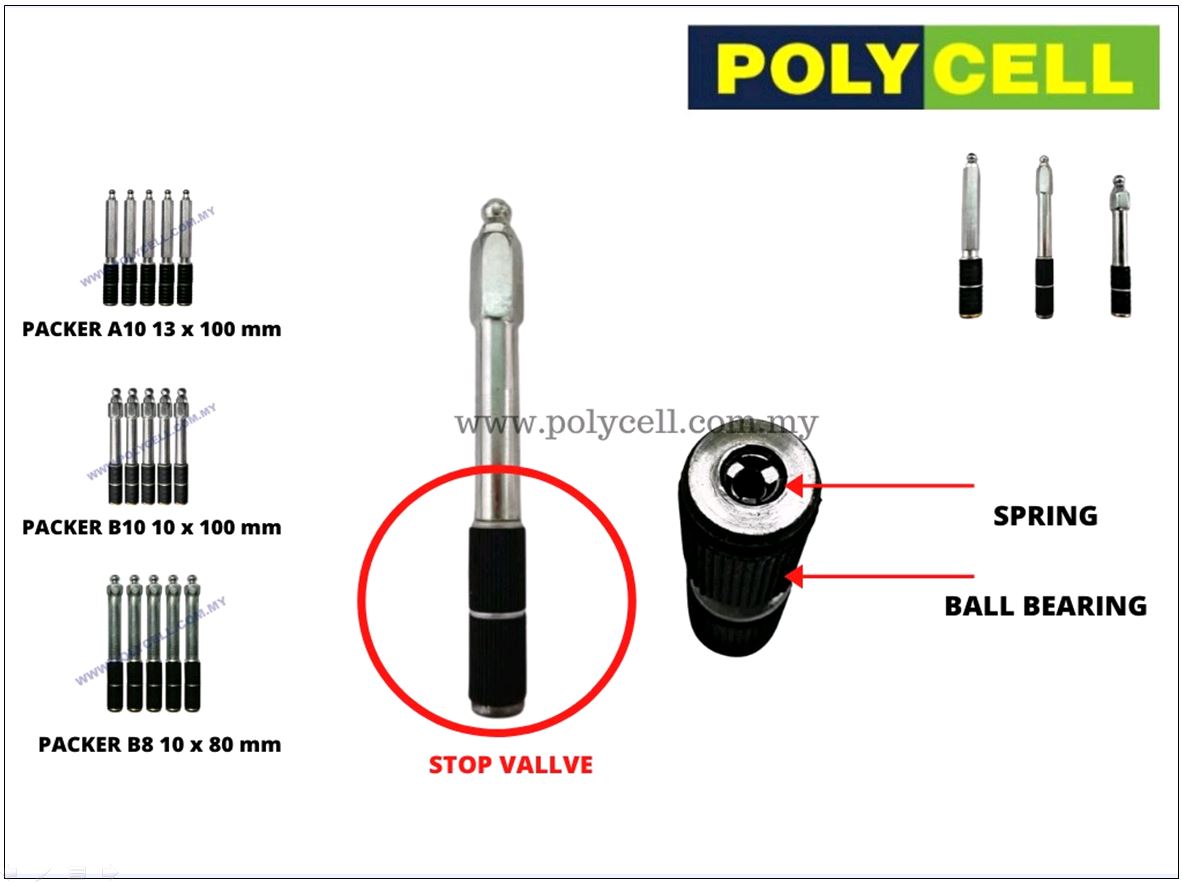

The stop valves are installed at the end to enable the immediate removal of the steel for patching.
| Model | Size | Packing |
|---|---|---|
| B6 | 10 x 60 mm | 1000 pcs/ box |
| B8 | 10 x 80 mm | 1000 pcs/ box |
| B10 | 10 x 100 mm | 1000 pcs/ box |
| A10 | 13.5 x 100 mm | 1000 pcs/box |
| A20 | 13.5 x 200 mm | 500 pcs/box |
| Customized Packers | 16 x 100 mm | MOQ 10 pcs |
| Customized Packers | 16 x 310 mm | MOQ 10 pcs |
INJECTION PACKER SYSTEM

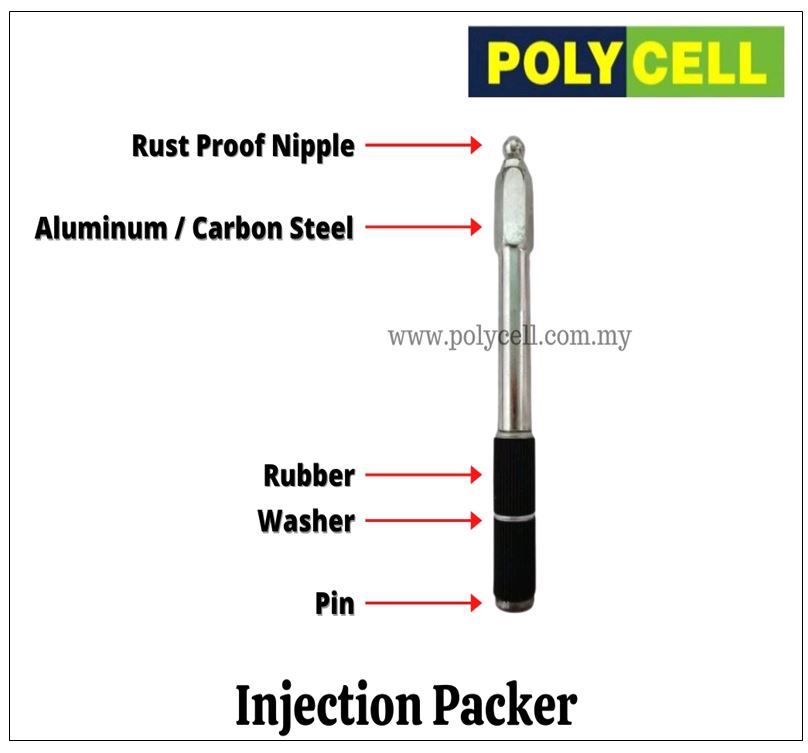

INJECTION PACKER DESIGN
B8 PACKER (10 x 80 MM)
B10 PACKER (10 x 100 MM)
A10 PACKER (13 x 100 MM)
A20 PACKER (13 x 200 MM)
CUSTOMIZED STEEL PACKER (16 x 310MM)
B6 PACKER (10 x 60 MM)
CUSTOMIZED STEEL PACKER (16 x 100MM)
